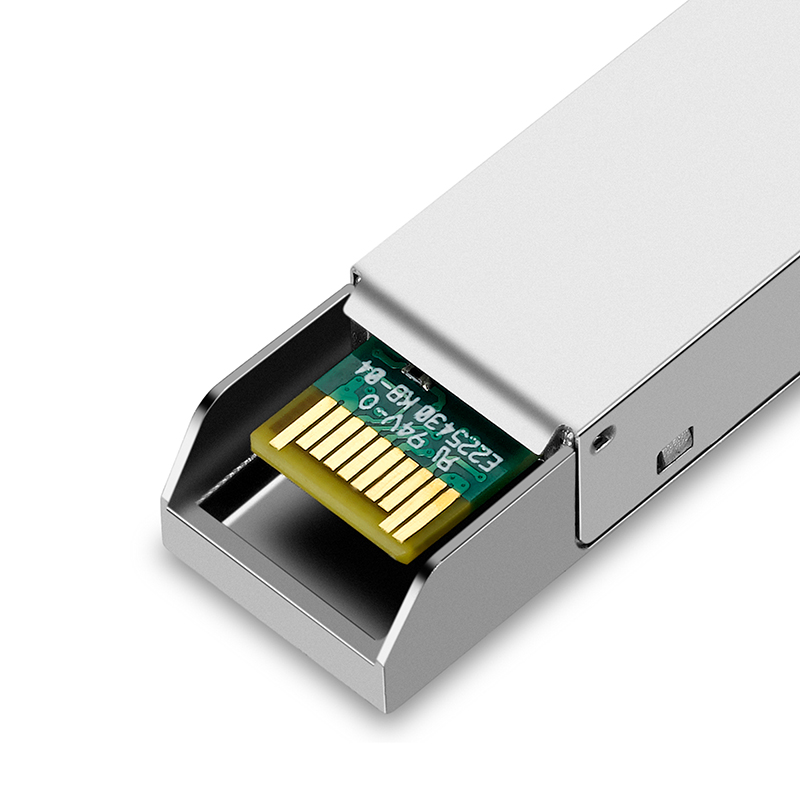

The 10/100/1000BASE-T Copper SFP Transceiver is small form factor pluggable transceiver. They are compatible with SFF-8074i Multi- Sourcing Agreement (MSA) and comply with Gigabit Ethernet standard as specified in IEEE Std 802.3. They are compliant with RoHS and lead-free per Directive 2002/95/EC. The physical layer IC (PHY) can be accessed via I2C bus, allowing access to all PHY settings and features.
The 10/100/1000BASE-T Copper SFP Transceiver is SGMII interface copper SFP with 10/100/1000BASE-T auto-negotiation enabled default,support TX-Disable.
More Details(DS070013)
|
Part No. |
Data Rate |
Distance*Note1 |
Interface |
Bail color |
Temp. *Note2 |
DDMI |
|
TCS-GEM1-01NCR |
10M 100M 1000M |
100m |
RJ45 |
NA |
ST |
NO |
|
TCS-GEM1-01NIR |
10M 100M 1000M |
100m |
RJ45 |
NA |
IT |
NO |
Features:
-
Operating data rate up to 1.25 Gbps
- Compact RJ-45 connector assembly
- Single 3.3V power supply and Low power dissipation
- Hot Pluggable
- 10/100/1000 BASE-T operation in the host systems with SGMII interface
- Support TX-Disable
- RoHS Compliant and Lead-Free
- Metal with lower EMI and excellent ESD performance
- ST: 0 ~ +70 deg C
- IT: -40 ~ +85 deg C
Applications:
- Switch to Switch interface
- Switch backplane applications
- File sever interface
